KNX Motion / Presence Detector Ceiling Surface 360º white color

DM KNT 01B

DINUY tips to choose your motion detector

165,90€ PVR

Consultar stock

Buy online

Description:

• KNX detector with high-quality, state-of-the-art PIR technology, for surface-mounted ceiling installation. • Can be configured in the following operating modes: - Motion detector. - Presence detector. - Constant brightness control. - Twilight switch. • 6 Motion Detection channels + 1 Constant Brightness Control. • The detection channels allow for: - Lighting control. - HVAC control. - Motion monitoring. • Master/Slave function. • Automatic or semi-automatic operating mode. • Incorporates a brightness and temperature sensor. • Possibility of disabling the detection LED. • Constant dimming of up to 4 groups using compensation. • 5 detection sensitivity levels. • Configuration and adjustment via ETS. • Elegant and clean design. • Application examples: residential areas, restrooms, schools, offices, hotels, meeting rooms, hospitals, garages, etc.
  • Technical characteristics
  • Dimensions
  • Documents
  • Logistics data
  • Buy online

Technical characteristics DM KNT 01B

Product reference DM KNT 01B
Consumption <7mA
Output channels 6+1 para Control Luminosidad Constante
Power Supply (V) 21Vcc - 32Vcc
Tecnology KNX
Programming by ETS5 o posterior
Installation Surface ceiling
Maximum Time setting (minutes) 60
Minimum Time setting (seconds) 1
Minimum Working Temperature (ºC) (min) -10
Maximum Working Temperature (ºC) (max) 45
Detecting angle (º) 360
Mounting height (m) 2.5
Coverage diameter (m) 7
Start up System Mode
KNX Medium TP1
Protection Level IP20
According with Directives Seguridad 73/23/EEC Comp. Electromagn. 204/108/EC
According to the Standard KNX Standard 2.0 EN60669-1, 2-1 y 2-3

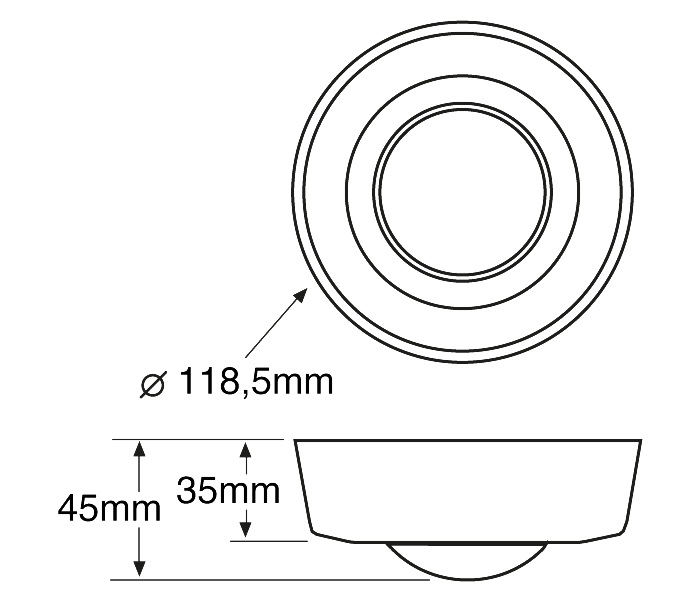

Dimensions DM KNT 01B

Product

Width (mm) 118.5
Depth (mm) 45
Height (mm)
Weight (g)
Unit EAN 8422447018578

Packaging

Type of packaging BX
Packing unit 1
Packing width (mm) 118
Packing depth (mm) 47
Packing height (mm) 118
Gross packing weight (kg) 0
