270º Wall and Ceiling Motion and Presence Detector White

DM BRA B1B

DINUY tips to choose your motion detector

125,45€ PVR

Disponible en stock

Buy online

Description:

• Detector with cutting-edge PIR technology for wall installation. Angled installation with DM ACC B1X accessory. • The detector allows individual adjustment of its three (3) PIR sensors. • IP55: Designed for indoor or outdoor installation. • The detector can be configured in three operating modes: Motion detector, Presence detector, or Twilight switch. • Push-in clamp terminal block, saving 60% in installation time. • ZCT (Zero Crossing Technology), switching on "zero crossing" when the 16A relay closes and opens, allowing control of large loads. • NO or NC contact status selectable from the smartphone app via Bluetooth. • Suitable for LED, fluorescent lamps, etc. • Elegant and clean design without physical potentiometers. • Application examples: residential communities, home exteriors, loading/unloading areas, and, in general, any outdoor or semi-covered area.
  • Technical characteristics
  • Dimensions
  • Installation
  • Documents
  • Logistics data
  • Buy online

Technical characteristics DM BRA B1B

Product reference DM BRA B1B
Power Supply (V) 230
Frequency (Hz) 50/60
Consumption < 1 W
Output channels 1
Type of load 16A cos φ = 1
Switching capacity (A) 16
LED lamps load (W) 400
Incandescent and Halogen 230V (W) 3.000
12V Halogen with electronic transformer (W) 3.000
Halogen lamps with ferromagnetic trafo (W 2.400
Voltage-free contacts No
Detecting angle (º) 270
Mounting height (m) 2.5
Detecting length (m) 12
Programming by App
Minimum Brightness level (lux) (min) 5
Maximum Brightness level (lux) (max) 2000
Tecnology IR
Mounting Wall, ceiling or corner (interior or exterior)
Fluorescent lamps load(VA) 1.300
Zero crossing point
Minimum Working Temperature (ºC) (min) -20
Maximum Working Temperature (ºC) (max) 55
Conectividad Bluetooth

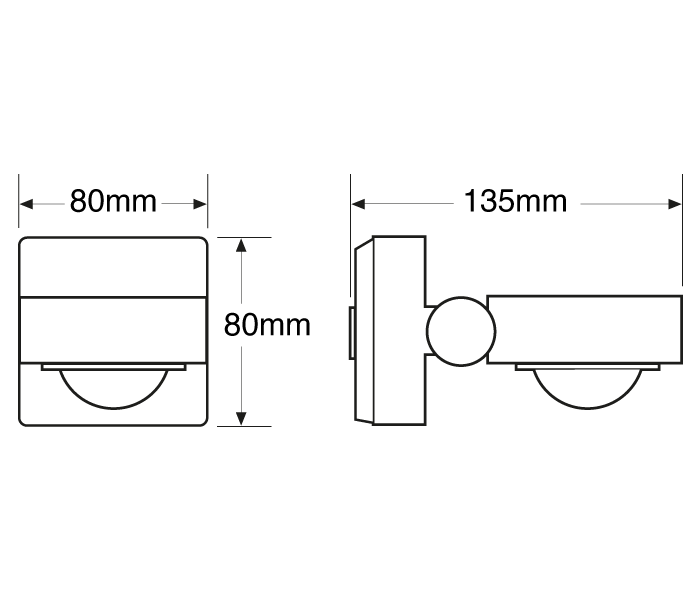

Dimensions DM BRA B1B

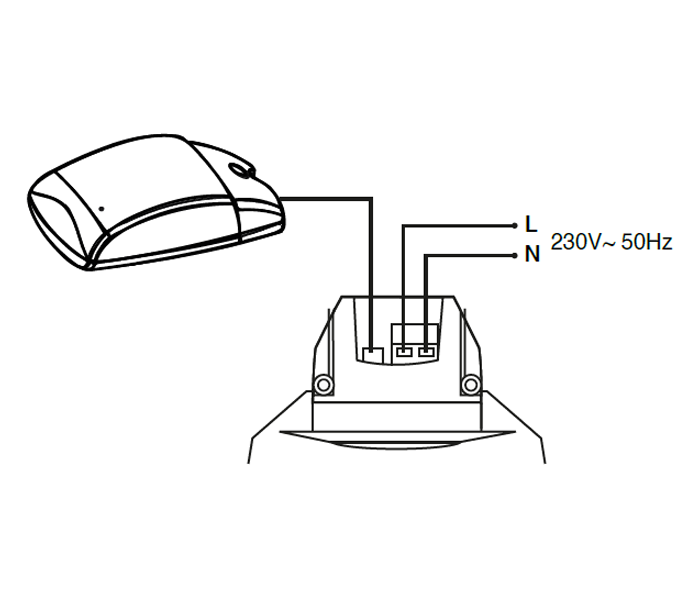

Installation DM BRA B1B

Product

Width (mm) 70
Depth (mm) 135
Height (mm) 80
Weight (g)
Unit EAN 8422447018431

Packaging

Type of packaging
Packing unit
Packing width (mm) 135
Packing depth (mm) 91
Packing height (mm) 72,5
Gross packing weight (kg) 0,2865
