Products / Multifunction and selective coverage detectors / Multifunction motion detector for hallways flush-ceiling mounting black

Multifunction motion detector for hallways flush-ceiling mounting black

DM TEC PAN

DINUY tips to choose your motion detector

164,07€ PVR

Disponible en stock

Buy online

Description:

• Multifunction: The detector can be configured in three operating modes: motion detector, presence detector, or twilight switch. • Selective coverage: Allows for the adjustment of up to two zones, with distinct detection areas within each. • Features state-of-the-art PIR technology; suitable for wall or ceiling installation. • IP55 rated: Designed for both indoor and outdoor installation. • Push-in terminal block: Reduces installation time by 60%. • ZCT (Zero Crossing Technology): Switches at the zero-crossing point when opening and closing the 16A relay, enabling the control of high-load devices. • Selectable NO (Normally Open) or NC (Normally Closed) contact status via the smartphone app (Bluetooth). • Compatible with all load types, including LEDs, fluorescent lighting, etc. • Sleek, clean design with no physical potentiometers. • Application examples: hallways, long passageways, etc.
  • Technical characteristics
  • Dimensions
  • Installation
  • Documents
  • Logistics data
  • Buy online

Technical characteristics DM TEC PAN

Product reference DM TEC PAN
Frequency (Hz) 50/60
Consumption < 1 W
Output channels 1
Type of load 16A cos φ = 1
Switching capacity (A) 16A
Incandescent and Halogen 230V (W) 3000W
12V Halogen with electronic transformer (W) 3000W
Halogen lamps with ferromagnetic trafo (W 2400W
Detecting angle (º) 360
Mounting height (m) 2.5
Maximum Time setting (minutes) 60
Minimum Brightness level (lux) (min) 5
Maximum Brightness level (lux) (max) 2000
Tecnology Infrareds (PIR)
Mounting Flush ceiling
Fluorescent lamps load(VA) 1300W (130µF)
Admits contactor
Zero crossing point
Minimum Working Temperature (ºC) (min) -10
Maximum Working Temperature (ºC) (max) 45
Protection Level IP40, Class II
Connectivity Bluetooth

Dimensions DM TEC PAN

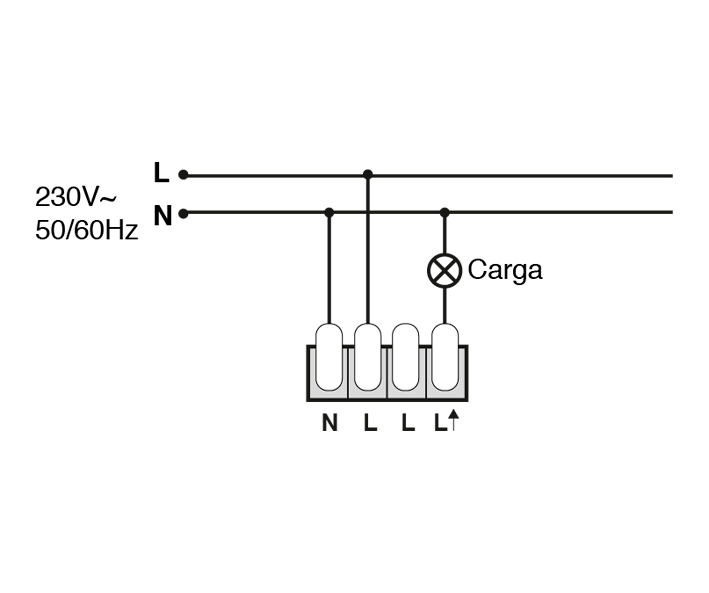

Installation DM TEC PAN

Product

Width (mm) 80
Depth (mm) 75
Height (mm) 80
Weight (g) 150
Unit EAN 8422447019087

Packaging

Type of packaging BX
Packing unit 1
Packing width (mm) 93
Packing depth (mm) 82
Packing height (mm) 68
Gross packing weight (kg) 0,1
