TOUCHLESS PUSHBUTTON

Description

  • Touchless (contactless) Pushbutton which allows switching the lighting or opening an automatic door, without the need of physical contact with the mechanism, simply by bringing the hand closer to it.
  • Three operating modes are available: Resettable Timer (30sec – 10min), Impulse Timer (1sec) or Impulse Relay (ON-OFF).
  • Adjustable detection range.
  • Incorporates a red LED that allows to be located in the dark.
  • Voltage-free output relay that allows the control of all types of loads, from lighting to automatic door engines.
  • Recessed installation compatible with standard mechanisms box, using clamping claws.
  • White frame and translucent red interior area.

Technical characteristics

Product reference PT GAR PR1
Power Supply (V) 230VCA
Frequency (Hz) 50
Consumption 0,5
Switching capacity (A) 16
LED lamps load (W) 400
Incandescent and Halogen 230V (W) 3000
12V Halogen with electronic transformer (W) 3000
Halogen lamps with ferromagnetic trafo (W 2400
Fluorescent lamps load(W) 1300
Admits contactor Yes
Zero crossing point Yes
Installation Universal Mechanism Box
Maximum coverage (m) 0,3
Permanent ON No
Warning Switch OFF No
Minimum Time setting (seconds) 1
Maximum Time setting (minutes) 10
Timed Impulse Relay No
Minimum Working Temperature (ºC) (min) 0
Maximum Working Temperature (ºC) (max) 40
Permanent light LED Yes
Mounting Flush-mounting into Universal Mechanism Box
Protection Degree IP20 according to UNE 20324

Dimensions

TOUCHLESS PUSHBUTTON - Dimensions - Dinuy

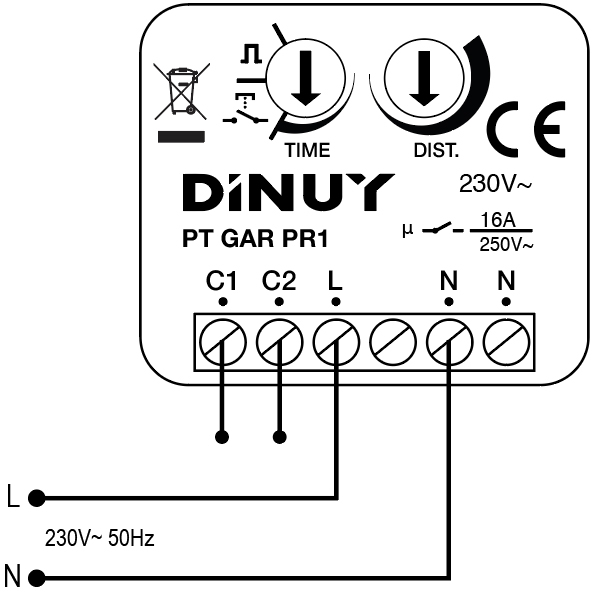

Installation scheme

TOUCHLESS PUSHBUTTON - Installation scheme - Dinuy
