Motion Detector Box Mounting – DM CAM 003

Universal Mechanism Box Mounting

Description

  • Universal box-mounted PIR motion detector
  • 2-wired installation, no neutral required.
  • Time delay and brightness level are adjustable by potentiometer or remote control (EM MAN DM1).Sensitivity by remote control.
  • Coverage: 200º in 8m (max.) at 1.2 – 1.5m high
  • Possibility to memorized the brightness level by remote control.
  • Zero crossing point technology to protect the contactors of the relay and manage high loads.
  • Valid for all type of lamps including LEDs and Fluorescent.
  • Admits external pushbuttons installation (no lighted).
  • Setting keys at the back of the sensor avoid unwanted manipulations…
  • Application examples: corridors, bathrooms, condominiums, etc.

Technical Features

DM CAM 003 DM CAM 001
Universal box
Type 2 wires 3 wires
Power supply 230V ~ ± 10% 50Hz 230V ~50Hz
Max. Load Incandescence &230V Halogens 3 ~ 200W 3.000W
Leds 3 ~ 100W 400W
VLT Halogens (ferromagnetic) 3 ~ 150W 2.400W
VLT Halogens (electronic) 3 ~ 100W 3.000W
Fluorescence 5 ~ 100W (10?F) 1.300W (130?F)
Compact Fluorescence 5 ~ 100W (8 lámparas máx.) 18x7W 12x11W 10x15W 10x20W 10x23W
Connection Valid for contactors with excitation current over 16mA Admits contactor
Coverage 200º in 8m (max) at 1,2 – 1,5mhigh 200º in 8m (max) at 1,2 – 1,5mhigh
Time 20sec / 1min / 5min / 15min / 30min 30sec ~ 10min
Luminosity 3Lux ~ 100Lux 3Lux ~ 100Lux
Sensibility Not Adjustable Adjustable by remote control (EM MAN DM0)
Operation temperature -10ºC – +45ºC -10ºC – +45ºC
Consumption <1W <1W
Protection rate IP40 IP40

Dimensions

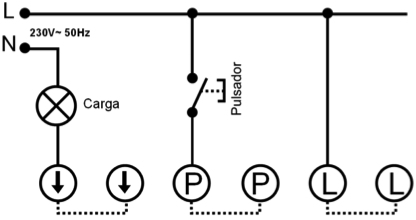

ESQUEMAS DE INSTALACIÓN

* The installation of the pushbutton is an option
