• Wireless 1-channel Switch actuator for general purpose.
• Up to 16A switching capacity with non-free voltage output.
• Two different operation modes:
– Switch ON/OFF.
– Timer: 3sec ~ 5min.
• Incorporates RF signal repeater function, which can be enabled or disabled as needed.
• A conventional pushbutton can be wired for local control.
• DIN-rail mounting.
• Dimensions: 1 module wide.230V-operated.
• Radio-frequency: 868,4MHz.
• Range: up to 100m (in the free field).
• Compatible with: EM KNX 002, PU KNX 001, RC KNX 001, SE KNX 003, DM KNX 001, DM KNX 002 & CO KNX 002.

Technical characteristics

Product reference IT KNX 001
Power Supply (V) 230VCA
Frequency (Hz) 50
Consumption 35mA
Output channels 1
Switching capacity (A) 16
Type of load 1 output channel switching ( NA contact in stand-by)
LED lamps load (W) 400
Incandescent and Halogen 230V (W) 3000
12V Halogen with electronic transformer (W) 3000
Halogen lamps with ferromagnetic trafo (W 500
Motores (VA) 0
Maximum current input 1/10VDC (mA) 0
Maximum Number of Equipments 0
Contacts Voltage-free
Binary/Analogic Inputs 0
Installation DIN Rail
Module number 1
Control Wireless and / or wired Pushbutton
Compatible with KNX-RF Protocol Easy Mode
Radiofrequency 868,3MHz
Maximum coverage (m) 100
Connection terminals Captive Screws
Cable section (mm2) 2.5
Minimum Storage Temperature (ºC) (min) -30
Maximum Storage Temperature (ºC) (max) 70
Minimum Working Temperature (ºC) (min) -5
Maximum Working Temperature (ºC) (max) 45
Protection Degree IP20 , UNE 20324

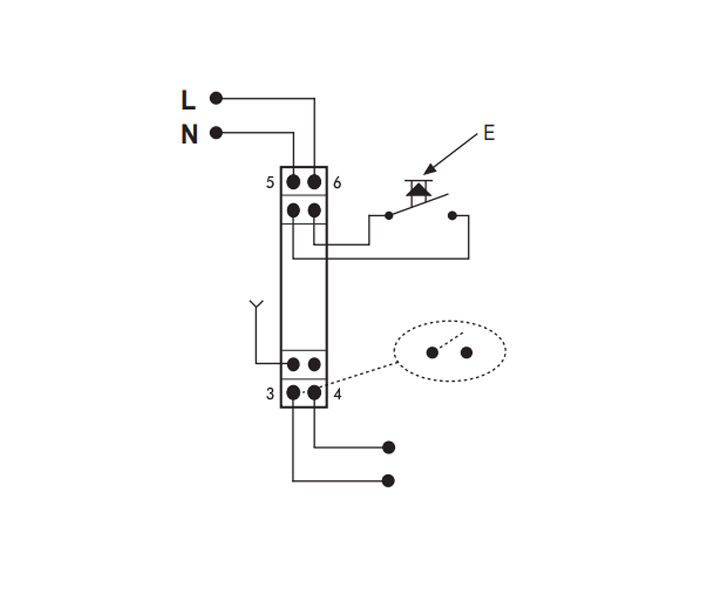

Installation scheme

1-CHANNEL SWITCHING ACTUATOR – IT KNX 001 - Installation scheme - Dinuy
