KNX-RF SIGNAL REPEATER – AM KNX 001

Description

• RF signal repeater. It enlarges the range between transmitters and actuators.
• Up to 3 consecutive units can be used in the same installation.
• Compatible with: any KNX-RF signal.

Technical characteristics

Product reference AM KNX 001
Consumption 25mA
Power Supply (V) 230VCA
Frequency (Hz) 50
Minimum Storage Temperature (ºC) (min) -10
Maximum Storage Temperature (ºC) (max) 45
Start up Easy Mode
Installation Mechanism box
KNX Medium RF
Radiofrequency 868,3MHz
Maximum coverage (m) 100
Minimum Working Temperature (ºC) (min) 0
Maximum Working Temperature (ºC) (max) 45
Protection Degree IP20

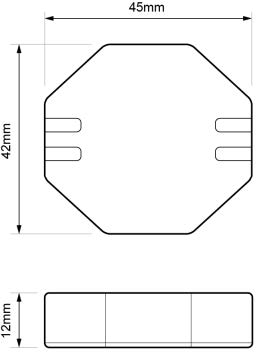

Dimensions

KNX-RF SIGNAL REPEATER – AM KNX 001 - Dimensions - Dinuy

Installation scheme

KNX-RF SIGNAL REPEATER – AM KNX 001 - Installation scheme - Dinuy
