WIRELESS INTERFACE FOR PUSHBUTTON – EM KNX 002

Description

• The 1 channel Universal Interface detects status changes at the inputs and sends KNX telegrams depending on its parameterisation through its switches.
• It can be connected conventional pushbuttons or auxiliary contacts to the device.
• The inputs are triggered by two independent input commands, for instance, by using 2 puschbuttons (N.O contacts).
• The device provides functions like switching or dimming of lighting, moving of blinds and shutters, managing scenes,..
• It is a flush mounted device to be inserted in an universal box, behind the pushbutton.
• Battery-operated, 2 x 3V Lithium batteries CR2025. Useful life higher than 8 years.
• Compatible with: CO KNX 001, IT KNX 001, CO KNX 002, PE KNX 001, MI KNX 001, RE KNX LE1, RE KNX LE2, RE KNX LE3, RE KNX RGB, RE KNX 010 and RE KNX DA1.

Technical characteristics

Product reference EM KNX 002
Power Supply (V) 2 baterías 3V CR2025
Output channels 1
Battery life > 8 años
Installation Mechanism box
Radiofrequency 868,3MHz
Maximum coverage (m) 100
Start up Easy Mode
Type of inputs Free-voltage
Minimum Working Temperature (ºC) (min) -10
Maximum Working Temperature (ºC) (max) 45
KNX Medium KNX-RF Easy Mode
Protection Degree IP20

Dimensions

WIRELESS INTERFACE FOR PUSHBUTTON – EM KNX 002 - Dimensions - Dinuy

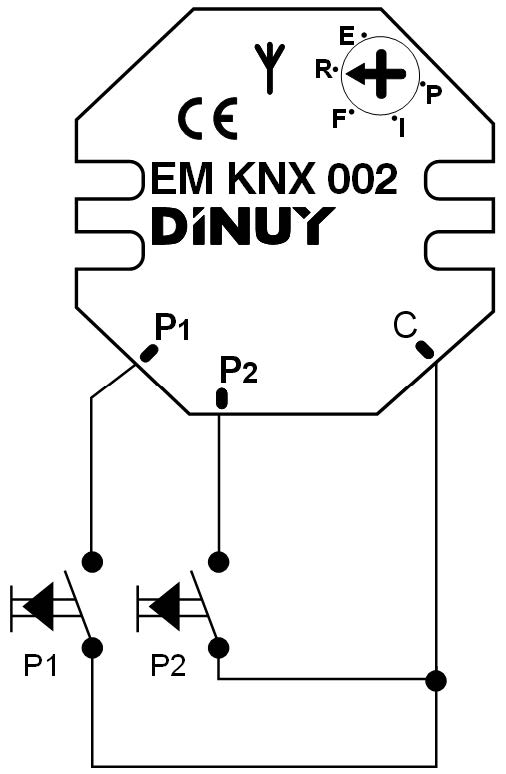

Installation scheme

WIRELESS INTERFACE FOR PUSHBUTTON – EM KNX 002 - Installation scheme - Dinuy
