1-10V CONSTANT LIGHT CONTROL – RE DMS 004
Description
• Daylight Harvesting system for 1-10V LED and Fluorescent lighting fixtures: uses daylight to offset the amount of artificial lighting needed to properly light a space, in order to reduce energy consumption. It is able to dim or switch lighting in response to changing daylight availability. It is designed to maintain a minimum recommended light level which will vary according to the needs and use of the space; for example, the commonly recommended light level for offices is 500 Lux on the desktop.
• It incorporates the Motion Detection (PIR) function, which makes the switch-on of the lighting conditional to the presence of people (optional).
• Two working modes are available: Daylight Harvesting + Motion detection or only Daylight Harvesting without motion detection.
• Pre-configured from factory to achieve approximately 500 Lux in the workplace.
• Possibility to set a minimum dimming level, avoiding switching the luminaires completely off.
• Built-in output relay which allows disconnecting and switching the lighting fixtures off.
• Surface ceiling mounting.
• Application examples: offices, schools, hospitals…
Technical characteristics
| Product reference | RE DMS 004 |
| Power Supply (V) | 230VCA |
| Frequency (Hz) | 50/60 |
| Output channels | 1 |
| Switching capacity (A) | 16 |
| Connection terminals | "lift" type |
| Cable section (mm2) | 2.5 |
| Minimum Storage Temperature (ºC) (min) | -30 |
| Maximum Storage Temperature (ºC) (max) | 70 |
| Minimum Time (min) | 10 |
| Maximum Time setting (minutes) | 30 |
| Detecting angle (º) | 360 |
| Mounting height (m) | 2.5 |
| Coverage diameter (m) | 7 |
| Consumption | 2W |
| Type of load | Ballast or Driver 1/10VDc |
| Minimum Brightness level (lux) (min) | 100 |
| Maximum Brightness level (lux) (max) | 1000 |
| Maximum current input 1/10VDC (mA) | 500 |
| Maximum current output 1/10VDC (mA) | 250 |
| Maximum Number of Equipments | 80 |
| Installation | Surface ceiling |
| Minimum Working Temperature (ºC) (min) | 0 |
| Maximum Working Temperature (ºC) (max) | 40 |
| Protection Degree | IP20, UNE 20324 |

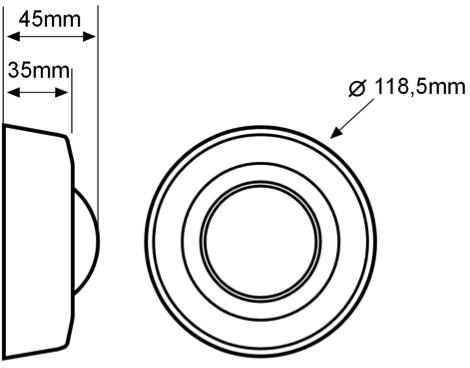

Dimensions

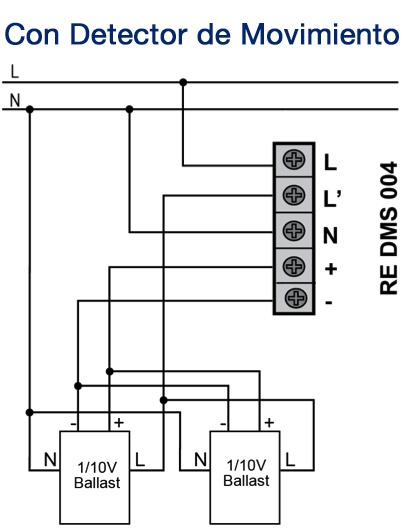

Installation scheme
