DALI CONSTANT LIGHT CONTROL – RE DMS DA3

Description

• Daylight Harvesting system for DALI LED and Fluorescent lighting fixtures: uses daylight to offset the amount of artificial lighting needed to properly light a space, in order to reduce energy consumption. It is able to dim or switch lighting in response to changing daylight availability. It is designed to maintain a minimum recommended light level which will vary according to the needs and use of the space; for example, the commonly recommended light level for offices is 500 Lux on the desktop.
• It has a 2 channels which allows controlling two different lines of luminaires with an offset in the second line (luminaires farthest from the window).
• Incorporates the Motion Detection (PIR) function, which makes the switch-on of the lighting conditional to the presence of people (optional).
• Two working modes are available: Daylight Harvesting + Motion detection or only Daylight Harvesting without motion detection.
• Pre-configured from factory to achieve approximately 500 Lux in the workplace.
• Possibility to set a minimum dimming level, avoiding switching the luminaires completely off.
• Built-in output relay which allows disconnecting and switching the lighting fixtures off.
• Flush-ceiling mounting.
• Possibility of expanding the motion detection area using slave sensors (DM SEN T03).
• Thanks to the accessory AC DMS 001, the manual switching and dimming control can be carried out via conventional Pushbutton / Switch,
• Application examples: offices, schools, hospitals…

Technical characteristics

Product reference RE DMS DA3
Power Supply (V) 230VCA
Frequency (Hz) 50/60
Output channels 2
Connection terminals "lift" type
Cable section (mm2) 2.5
Minimum Storage Temperature (ºC) (min) -30
Maximum Storage Temperature (ºC) (max) 70
Minimum Time (min) 10
Maximum Time setting (minutes) 30
Detecting angle (º) 360
Mounting height (m) 2.5
Coverage diameter (m) 7
Consumption 2W
Type of load Ballast or Driver DALI
Maximum number of extra movement sensor 14
Minimum Brightness level (lux) (min) 100
Maximum Brightness level (lux) (max) 1000
Maximum Number of Equipments 64
Installation Flush ceiling
Minimum Working Temperature (ºC) (min) 0
Maximum Working Temperature (ºC) (max) 40
Protection Degree IP20, UNE 20324

Dimensions

DALI CONSTANT LIGHT CONTROL – RE DMS DA3 - Dimensions - Dinuy

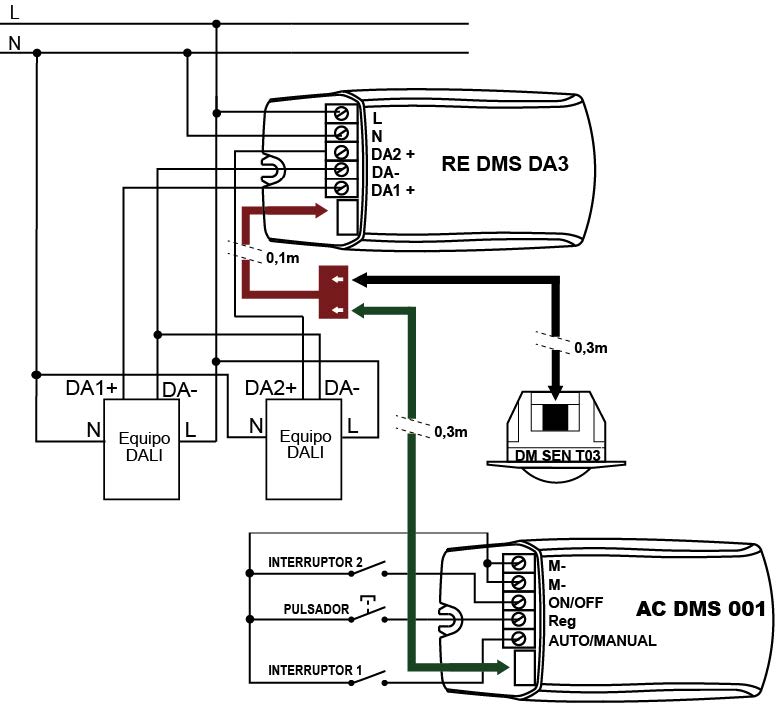

Installation scheme

DALI CONSTANT LIGHT CONTROL – RE DMS DA3 - Installation scheme - Dinuy
