4-CHANNEL LED DIMMING ACTUATOR – RE KNT 004

Description

4-channel Dimming Actuator for:
-Incandescence and 230V Halogen lamps.
-LV Halogen lamp with electronic transformer.
-Dimmable 230V LED lamps.
-Dimmable 12V – LED lamps (electronic transformer).
Leading or Trailing edge dimming technology.
Optional manual dimming control by built-in potentiometer (even without bus connection).
Protected against overloads and short-circuits. Built-in resettable heating protection.
Modular installation device. DIN-rail mounting.
5-modules wide.
Anti-panic input for safety systems: disabling this input, the lamps will turn on to the maximum brightness ignoring the dimming.
Built-in KNX BCU (Bus Coupler Unit).

Technical characteristics

Product reference RE KNT 004
Power Supply (V) 230VCA
Frequency (Hz) 50
Consumption < 10mA
Output channels 4
Type of load Dimmable LED lamps, Incandescent and Halogens
LED lamps load (W) 0
Dimmable 230V LED lamps (leading edge) 4W ~ 120W (per channel)
Dimmable 230V LED lamps (trailing edge) 4W ~ 250W (per channel)
Dimmable 12V LED lamps with electronic transformer 5 transfo of 50W and 1 lamp per transfo or 2 transfo of 100W and 1 lamps per transfo
Incandescent and Halogen 230V (W) 250
12V Halogen with electronic transformer (W) 250
Halogen lamps with ferromagnetic trafo (W 0
Motores (VA) 0
Maximum current input 1/10VDC (mA) 0
Maximum Number of Equipments 0
Binary/Analogic Inputs 0
Installation DIN Rail
Module number 5
Control KNX Bus
Programming by ETS4 o posterior
Compatible with KNX
Connection terminals Captive Screws
Cable section (mm2) 6
Minimum Storage Temperature (ºC) (min) -30
Maximum Storage Temperature (ºC) (max) 70
Minimum Working Temperature (ºC) (min) -5
Maximum Working Temperature (ºC) (max) 45
Protection Degree IP20 , UNE 20324

Dimensions

4-CHANNEL LED DIMMING ACTUATOR – RE KNT 004 - Dimensions - Dinuy

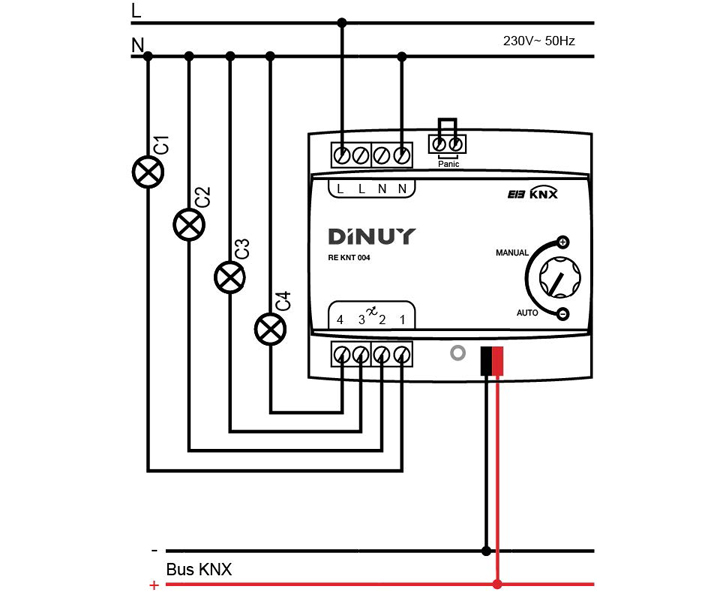

Installation scheme
